Description

Product details

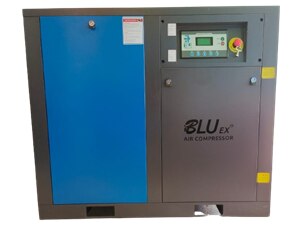

100 HP Industrial Air Compressor Model No. - BEI - 100 HP D Dimensions - 1750x1280x1590 MM Weight- 1350 KG LUBRICATED, ELECTRIC ROT0ARY SCREW AIR COMPRESSOR MODEL BEI - 100 HP D Description 100 HP Direct Driven Screw Air Compressor Air Flow/ Air Discharge Pressure (CFM)/(m3/min)/MPa (476) 13.48/0.80 Ambient Temperature oC -5~+45 Cooling Method Air Cooling Lubricant Oil Volume Ltr 42 Transmission Mode Direct Driven Air Quantity Adjusting Method ON-OFF Auto Adjusting Oil Content of the Discharged Air Ppm ≤3 Noise dB(A)68 ± 2 Setting Pressure of Safety Valve MPa Rated Working Pressure x1.2 Motor Power KW(HP) 75(100) Class/ Insulation F Class IP55 Motor Efficiency 94.70% Rotation Speed RPM 2900 Starting Method Class Y-Δ Protection/ Insulation IP55/F Fan Power Rotation Speed RPM 1440 Air Quantity M3/Min 185 External Outlet Diameter Inch G 2"
